  • From: Leszek Kosarzewski <leszek.kosarzewski AT gmail.com>
  • To: "Brandenburg, Daniel" <brandenburg.89 AT osu.edu>
  • Cc: "Brandenburg, Daniel via Epic-backward-hcal-l" <epic-backward-hcal-l AT lists.bnl.gov>
  • Subject: Re: [[Epic-backward-hcal-l] ] nHCAL Meeting July 1, pre-TDR assignments
  • Date: Tue, 1 Jul 2025 14:43:35 -0400

Dear Colleagues

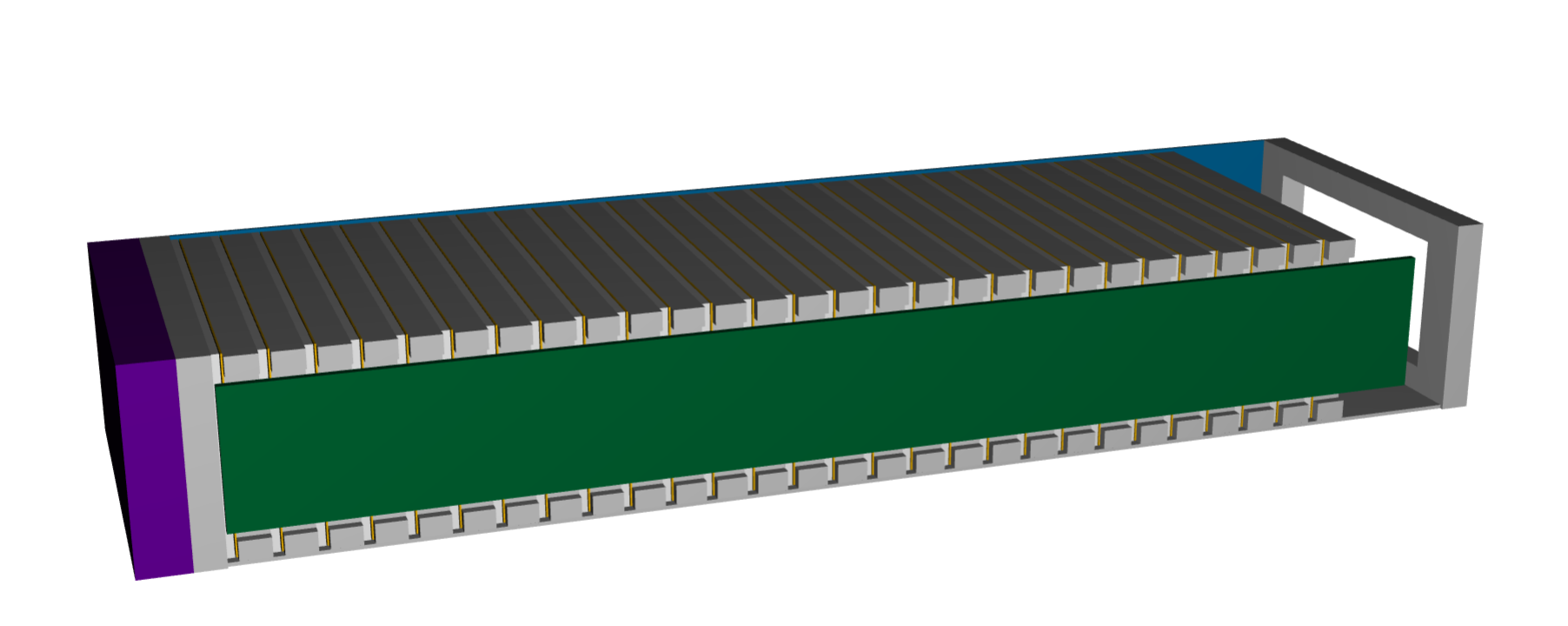

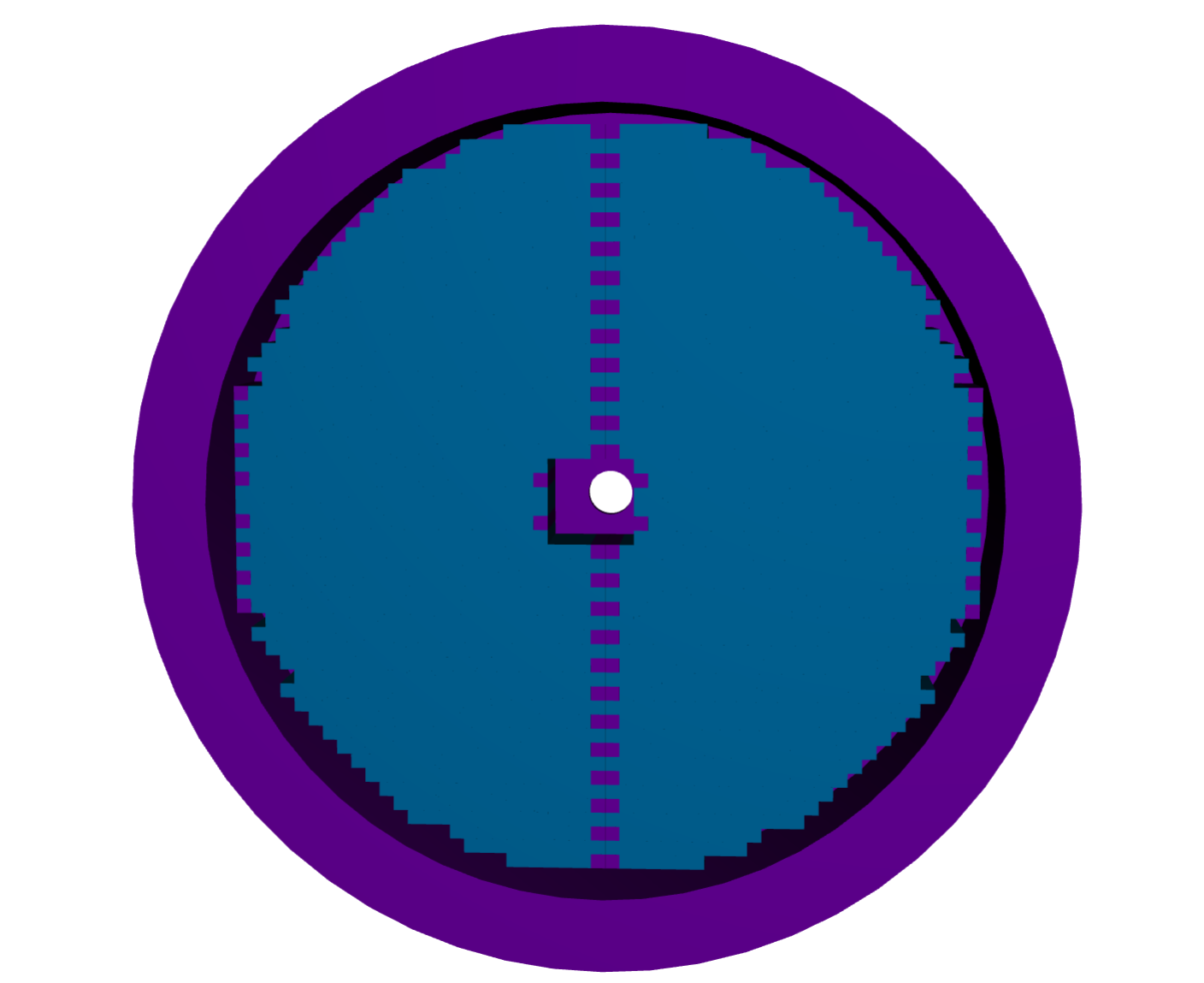

Here's a work in progress version of the detailed nHCal geometry implemented using LFHCAL. You can access it here:

https://github.com/eic/epic/tree/negative-HCal-dev
use this configuration:
https://github.com/eic/epic/blob/negative-HCal-dev/configurations/backward_hcal_LFHCAL_geo.yml

I removed some of the modules that overlapped with collar, so it's smaller than LFHCAL. We can think about adding extra 4M (4 tile) modules in a few places (also in the center). I think, it may be good to check with project mechanical engineers on what exactly they implemented. For now, we still plan to use a simplified version to optimize the geometry, but will switch to this one once decided.

Best regards, Leszek





wt., 1 lip 2025 o 10:30 "Brandenburg, Daniel" <epic-backward-hcal-l AT lists.bnl.gov> napisał(a):

Hi All,



This is a reminder for our meeting today at 2pm EST.



Pre-TDR Assignments:

  • Sam: neutron efficiency
  • Tianhao: Simulation vs. CMS data, impact of tile uniformity
  • Maria: intro/overview of design optimization
  • UIUC: Updates to muon ID and muon plots
  • Leszek: updates to sampling fraction and geometry description. Update into plots to include neutrons / muons and mean energy for the tail catcher region
  • CTU (Sasha/alexander/Subadip): Upate plots similar to DAC presentation to show the position resolution (5x5, 10x10, 15x15) and the Delta Rxy distribution.
  • Yevhenia: nHCAL performance evaluation and tests



I have a version of the pre-TDR with only the nHCAL that we can use to draft before pushing our updates to the official epic pre-TDR document:



View only link:

https://www.overleaf.com/read/srykwmdjtkpj#9fc320



During the meeting I can add emails for edit access.





INDICO:

https://indico.bnl.gov/event/28808/



Besides the pre-TDR assignments, I would like to revisit a few things wuickly from last week since attendance was rather low last week. Other contributions are welcome, please add your item to the agenda or let me know.





ZOOM:

https://osu.zoom.us/j/96702343935?pwd=FsDMQE9kpQVJOu4HMRB6sBEi4P8vgB.1



Please upload any slides by the time of the meeting. Talk to you soon.



Best,

Daniel Brandenburg

Assistant Professor

College of Arts and Sciences

Department of Physics

Ohio State University
