Hi All,

All jobs have finished.

• In the Run22 dataset I see no zombie files and 60,683,213 events

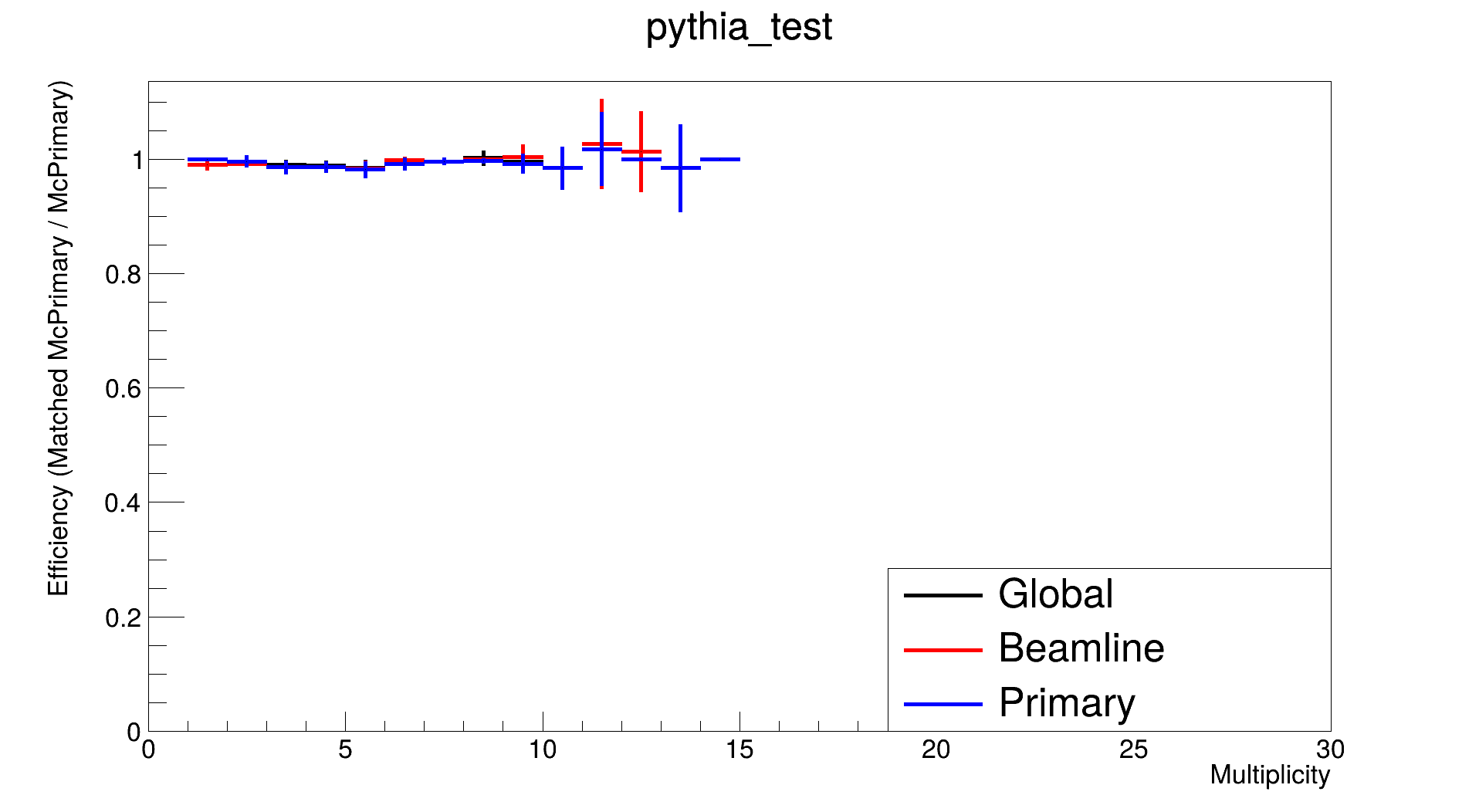

• Updated performance plots with a bit more statistics from the pythia productions

• Most importantly, beamline tracks have ~90% efficiency, charge id is much improved and platues at a usable rate ~35% misidentification.
• Pythia samples all appear to have full statistics as well

Please let me know if you see any issues, and even better, please let me know if you have any results from these productions that can be highlighted in the collaboration meeting coming ip. Thank you

Best,

Daniel

Daniel Brandenburg

Assistant Professor

College of Arts and Sciences

Department of Physics

Ohio State University



From: star-fwd-software-l-request AT lists.bnl.gov <star-fwd-software-l-request AT lists.bnl.gov> on behalf of "Brandenburg, Daniel" <star-fwd-software-l AT lists.bnl.gov>
Date: Monday, August 4, 2025 at 10:33 AM
To: star-fwd-software-l AT lists.bnl.gov <star-fwd-software-l AT lists.bnl.gov>
Subject: [[Star-fwd-software-l] ] Pythia & Data samples

This Message Is From an External Sender

This message came from outside your organization.

Report Suspicious



Hi All,

Last week a made a few more substantial improvements to the tracking, especially in full events (e.g. Pythia and low luminosity data). Some details for those interested below.

Locations:

Pythia: /gpfs01/star/pwg_tasks/FwdCalib/PROD/Pythia

• /gpfs01/star/pwg_tasks/FwdCalib/PROD/Pythia/pythia_dybg_vz0/
• /gpfs01/star/pwg_tasks/FwdCalib/PROD/Pythia/pythia_dy_vz0/
• /gpfs01/star/pwg_tasks/FwdCalib/PROD/Pythia/pythia_jet_nofilter_vz0/
• /gpfs01/star/pwg_tasks/FwdCalib/PROD/Pythia/pythia_JPsi_vz0/

Run22 Low Luminosity: /gpfs01/star/pwg_tasks/FwdCalib/PROD/forwardCrossSection_2022/04082025

Note: some are still running, but all should be done by today sometime.

Tracking improvements:

• Modify Kalman filter to use sqrt formalism to ensure pos def con matrices even in numerically unstable regions
• Align reference planes with the direction of largest error for FST spacepoints
• Seed track charge based on curvature estimate using only the extremum points (e.g. beamline + outermost FST)

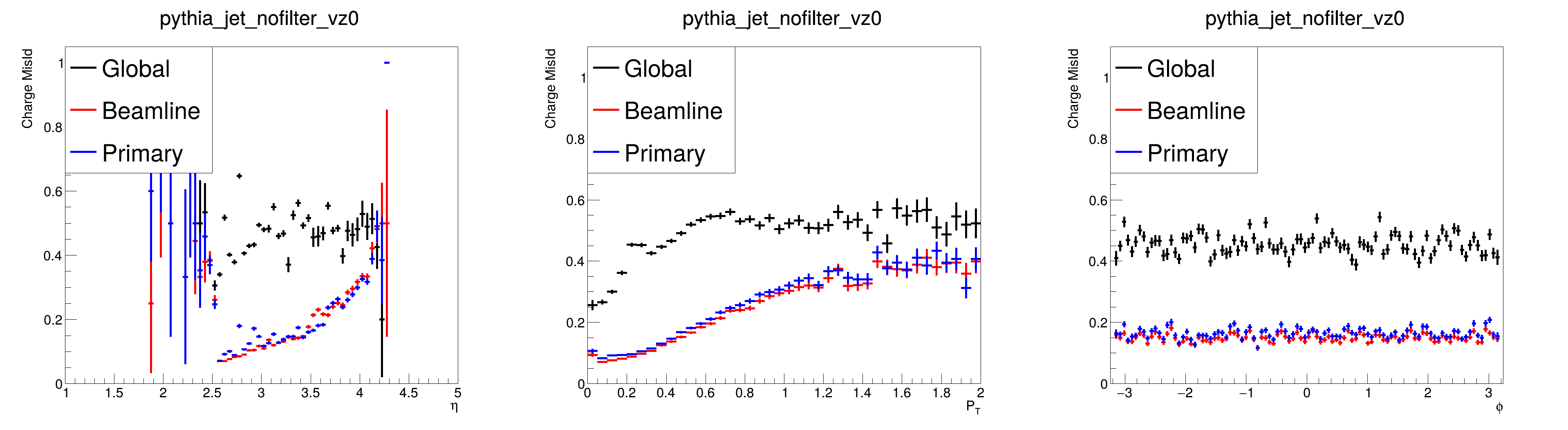

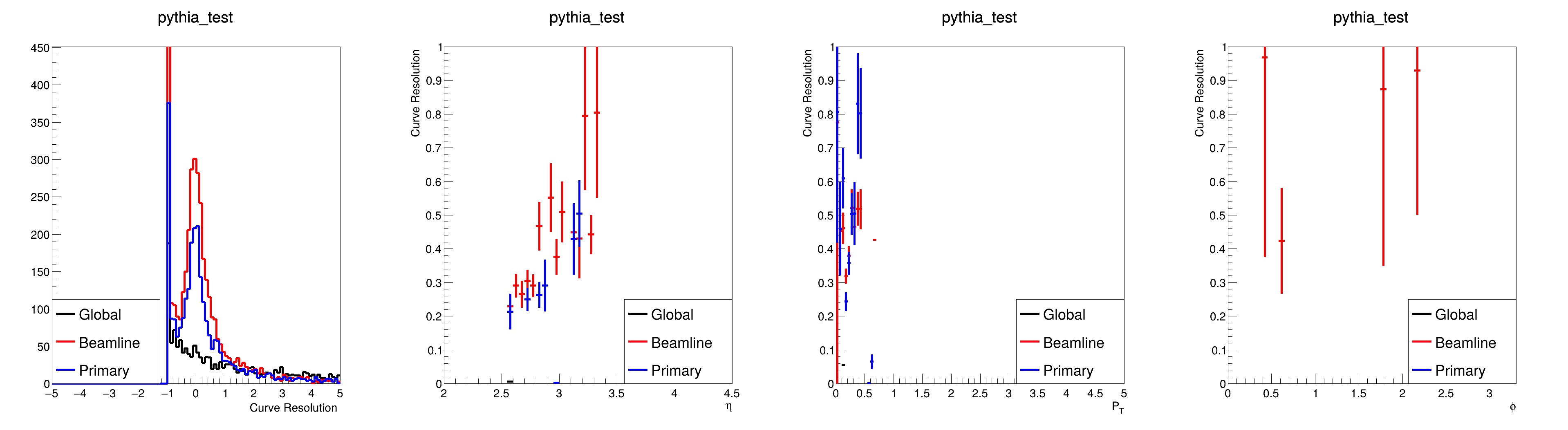

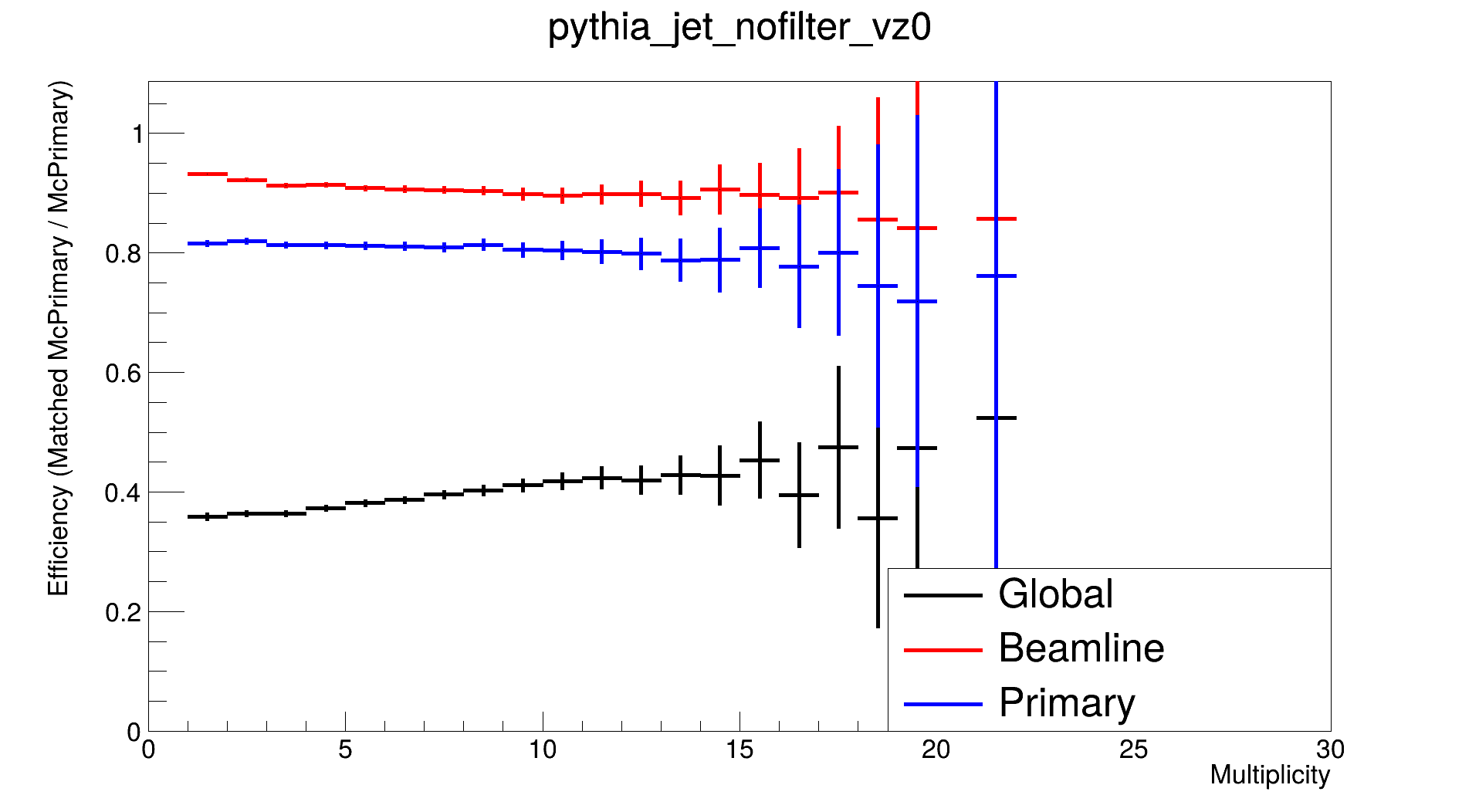

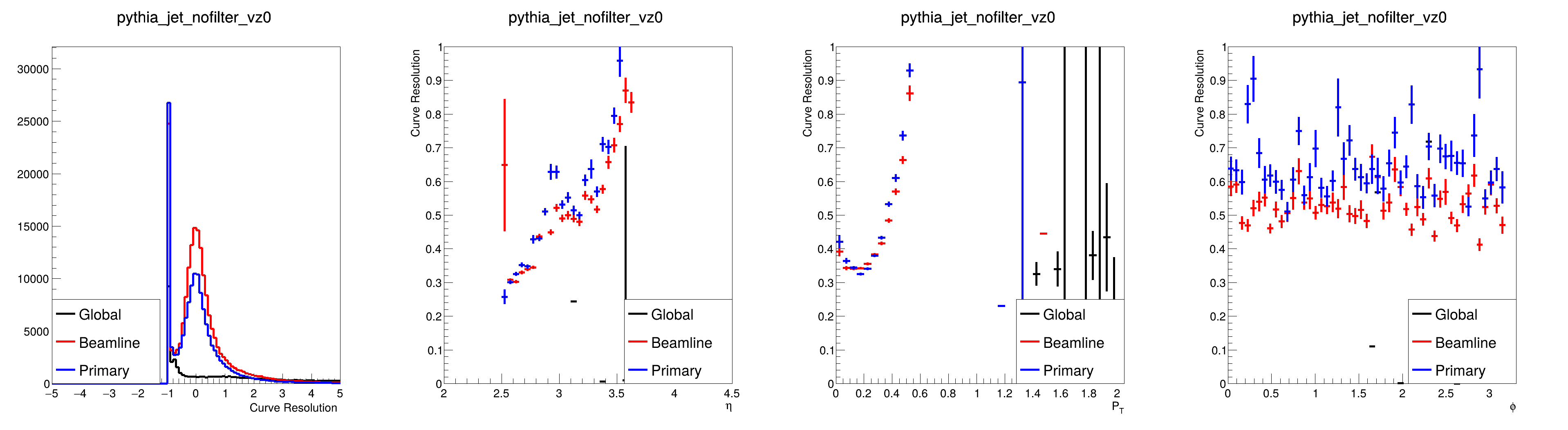

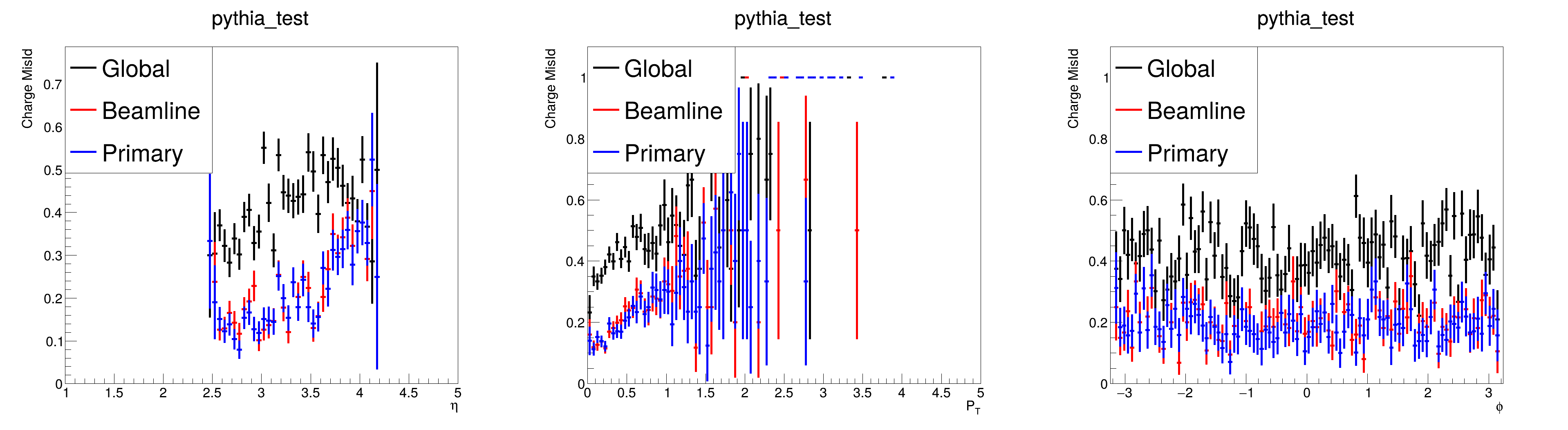

• Plots below show significant improvement in charge misid, momentum resolution, and mult dep efficiency
