Star-tpc-l mailing list

[videbaek <videbaek AT bnl.gov>]

I took a recent run 173019

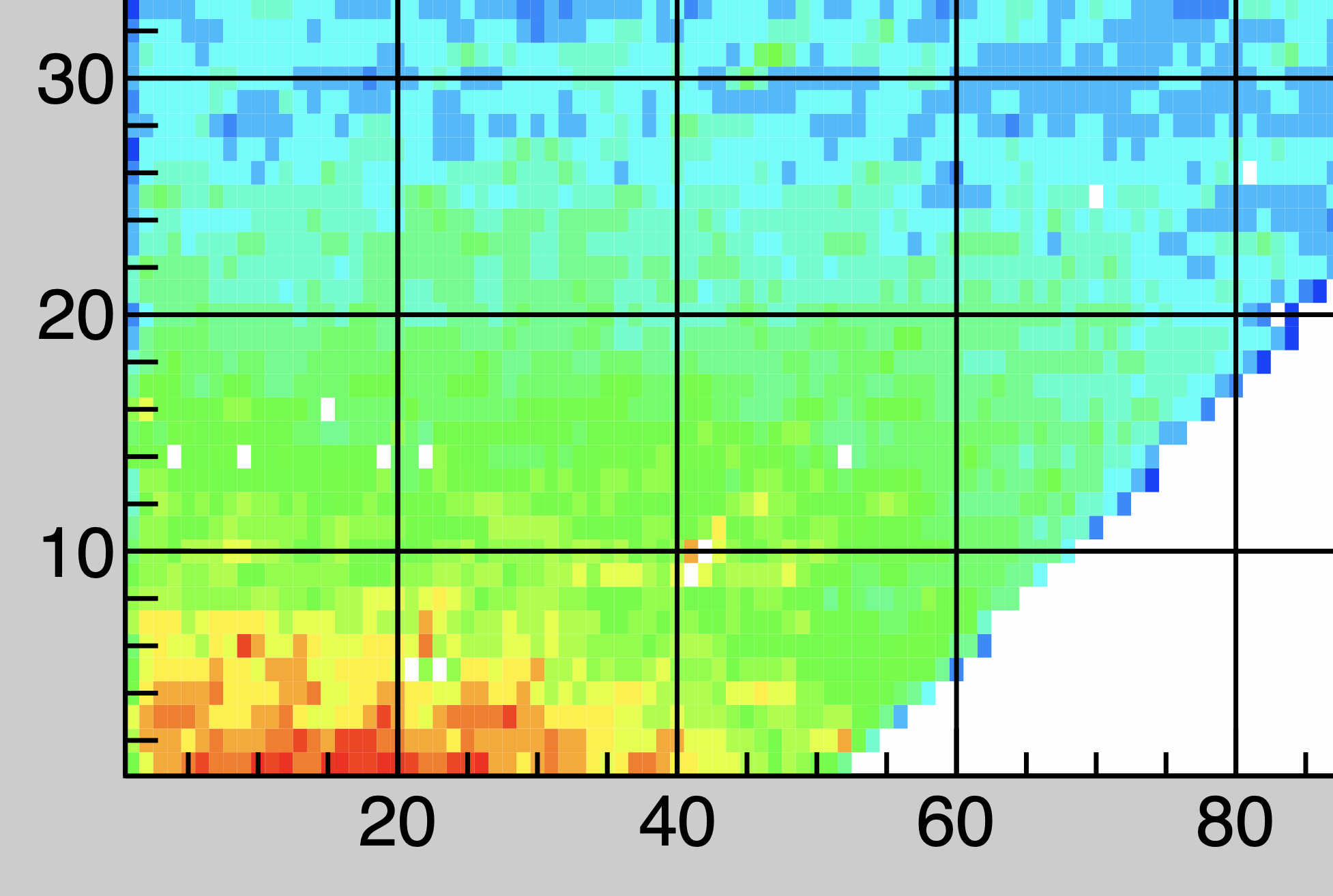

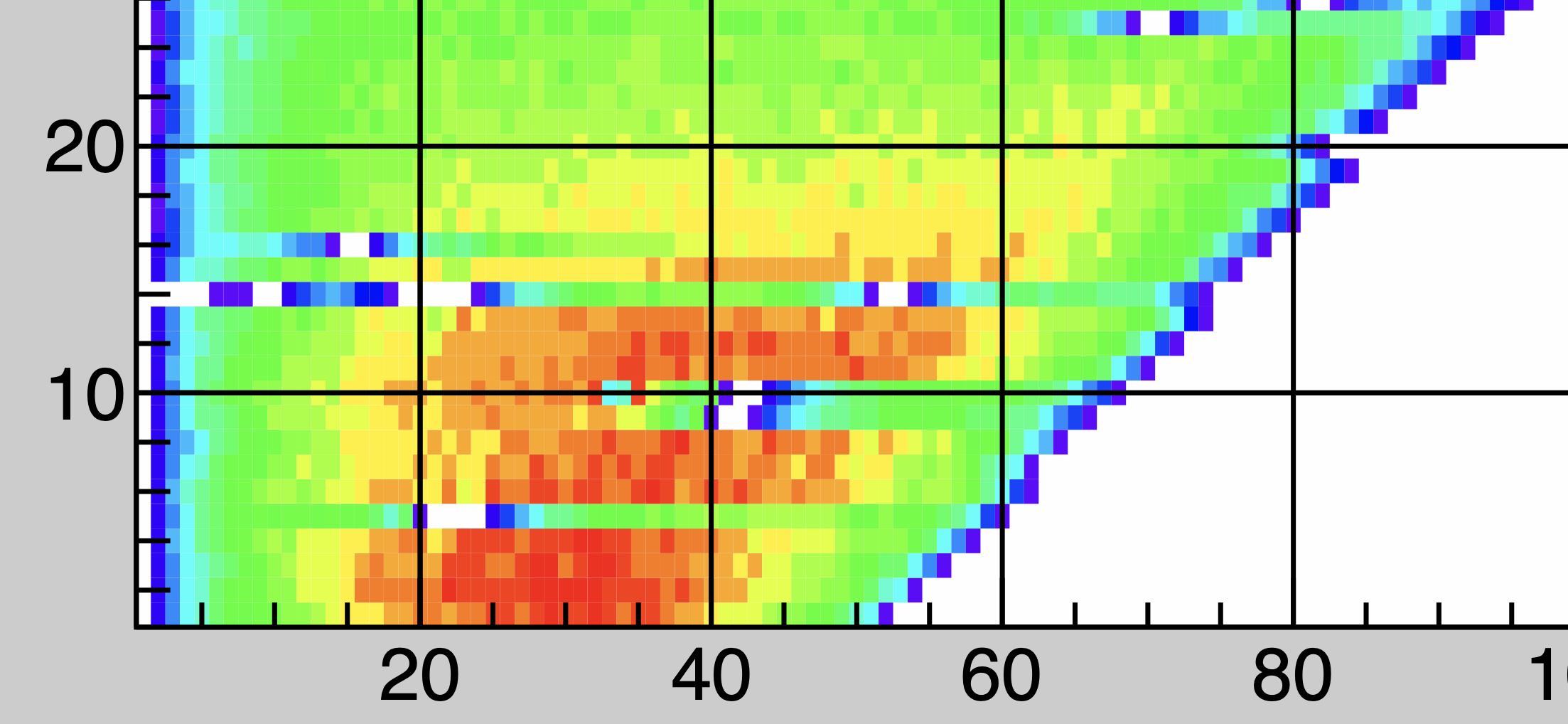

The first plot is the adc distributions
and the second the cluster. this is the itpc region. for itpc sector 3.
You see that whenever there is a single dead channel is seems to affect
regions in the same row
by reduced intensity.
Is this also seen in fastoffline? I guess whats shw there is hit
distributions on track?
This pattern is consistently seen over different sectors.

I can understand there is reduced effenciency for clusters with the
nominal cluster width in pads (3-5 pads) buts this seems to extend much
further.



--
Flemming Videbaek
senior scientist, emeritus
videbaek @ bnl.gov
Brookhaven National Lab
Physics Department
Bldg 510D
Upton, NY 11973

phone: 631-344-4106
cell     :  631-681-1596

Attachment: Screenshot 2025-06-22 at 12.33.08.png
Description: PNG image

Attachment: Screenshot 2025-06-22 at 12.32.45.png
Description: PNG image
